Secure supply
Efficient and flexible solutions
Your individual needs determine optimal use: we offer a wide range of innovative and need-based solutions for the supply of hydrogen by truck (bulk H₂).
Hydrogen technology from Tyczka Hydrogen
Continuous supply, flexible operation
We offer bulk hydrogen for medium and large requirements: Delivery takes place through trailers supplying your storage tanks. We also install the storage technology on site, for example suitable interfaces or various storage solutions - stationary large bundles (so-called MaxiPacks), tanks or trailer swap stations. On-site production can also be a viable option for covering large, plannable requirements. At the customer's request, we can install and operate an on site production system.
Secured supply:
Together with you and our technology partners, we develop individual refuelling solutions for the customer requirements (based on rental and operator models; only applies to the mobility sector).
For small delivery quantities:
If you need smaller quantities of hydrogen (cylinders or bundles), we will be happy to deliver them to you with our sister company Tyczka Air Gases GmbH
Our technology solutions overview
Supply and storage
High-pressure bundles (MaxiPacks)
Stationary high-pressure bundles with a modular capacity of 90 kg each at 180 to 225 bar.
Pressure tank installations
Vertical or horizontal steel tanks with a capacity of up to 420 kg at a maximum pressure of 45 bar.
Trailer exchange stations
Trailer as on- site storage in the exchange concept with a capacity of up to 1,200 kg at 380 bar.
On-site solutions in the operator model
Construction and operation of on-site production systems, adapted to individual customer requirements / local situation.
High-pressure bundles (MaxiPacks)
Our stationary high-pressure bundles with a maximum storage pressure of 200-300 bar are ideal for high pressure requirements, smaller quantities and gradual increases in demand.
Details
- Base area from 3,8 – 8 m²; hight from 1,8 – 2,8 m
- Usable amount of approx. 90 kg hydrogen per MaxiPack
- Stackable
- Modularly expandable
- Other formats are available on request

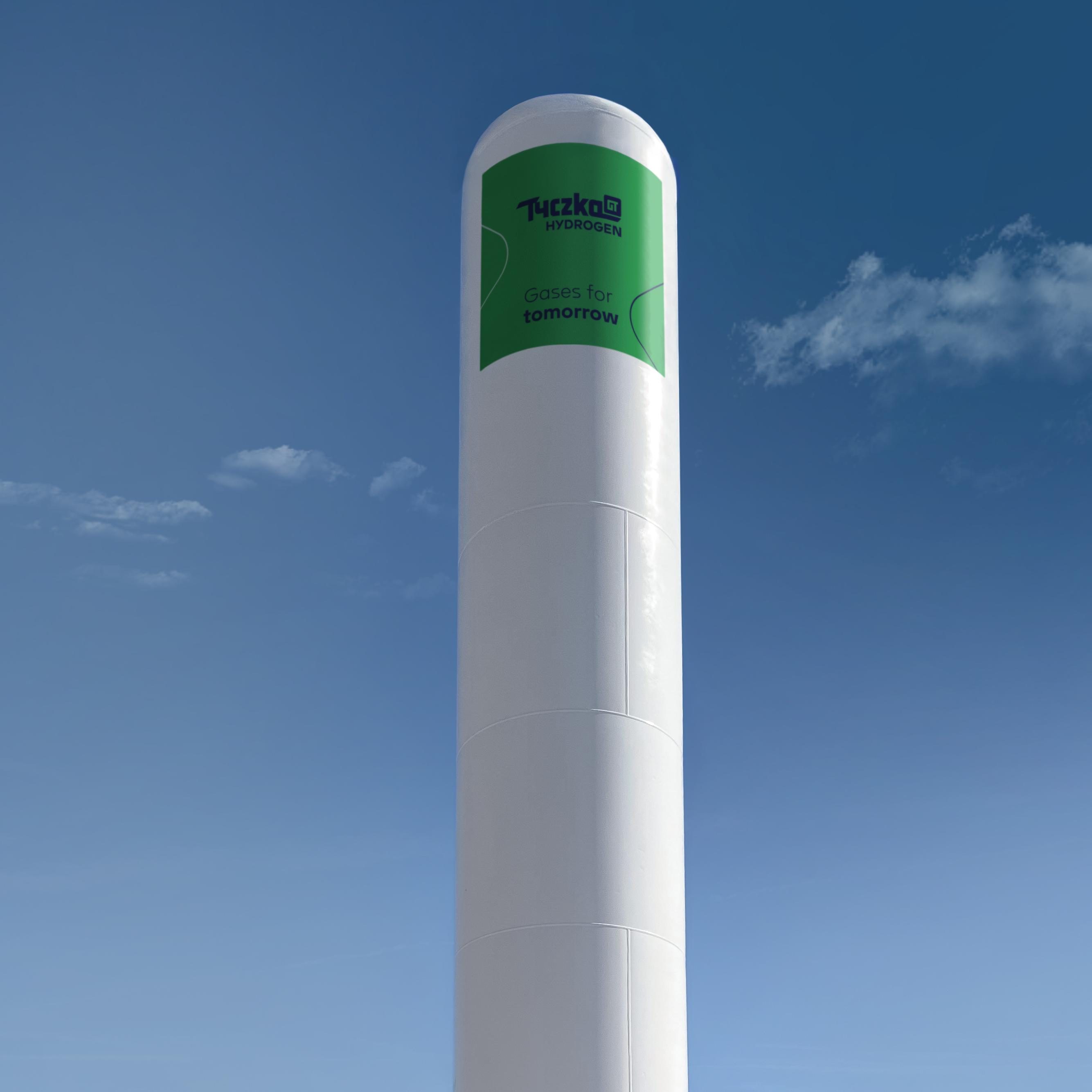

Pressure tank installations
Our steel tanks with a maximum pressure of 45 bar are ideal for the long-term supply of medium to large quantities with low pressure requirements.
Details
- Up to 115 m³ internal volume; length up to 21 m
- Usable quantity up to approx. 420 kg hydrogen
- Can be installed horizontally and vertically
- Low maintenance

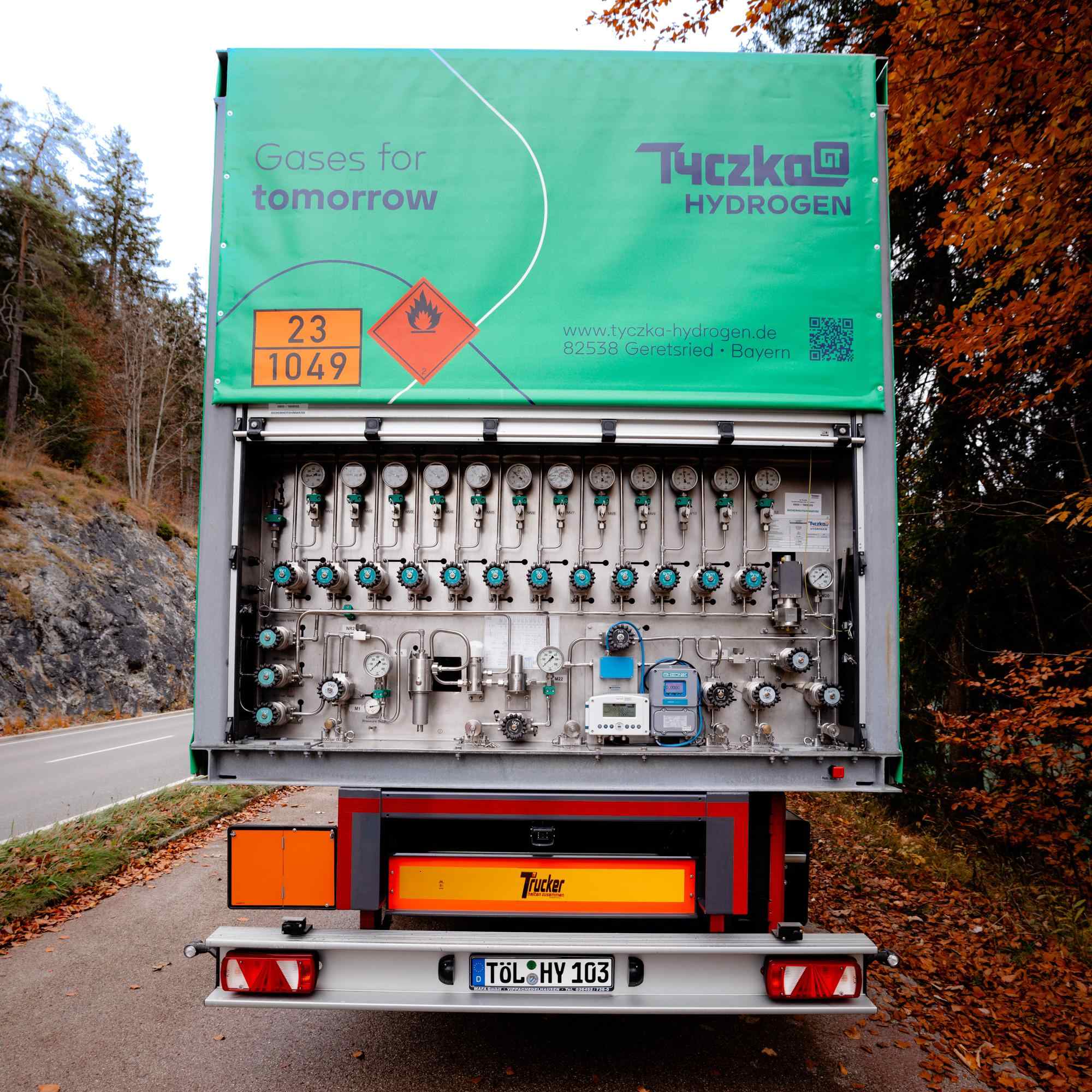

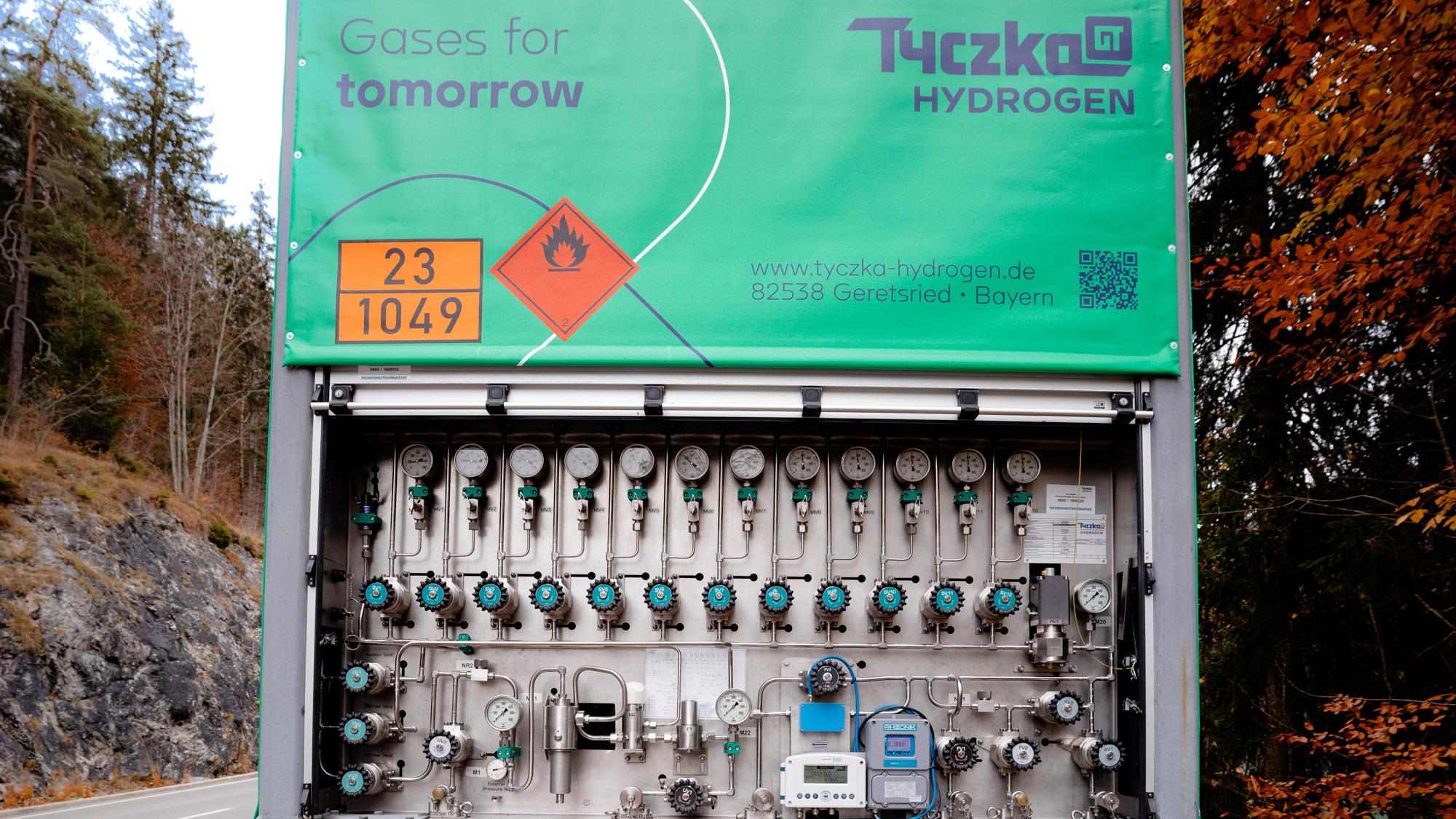

Trailer exchange stations
Transport trailers for hydrogen are used to fill storage tanks but can also be used as on-site storage tanks in the exchange concept and as a multi-pressure supply system for refuelling stations.
Details
- Based on innovative composite tanks (type IV) with a maximum operating pressure of 380 bar
- Capacity of over 1,200 kg of hydrogen enables efficient transportation even over long distances
- Other capacities also available

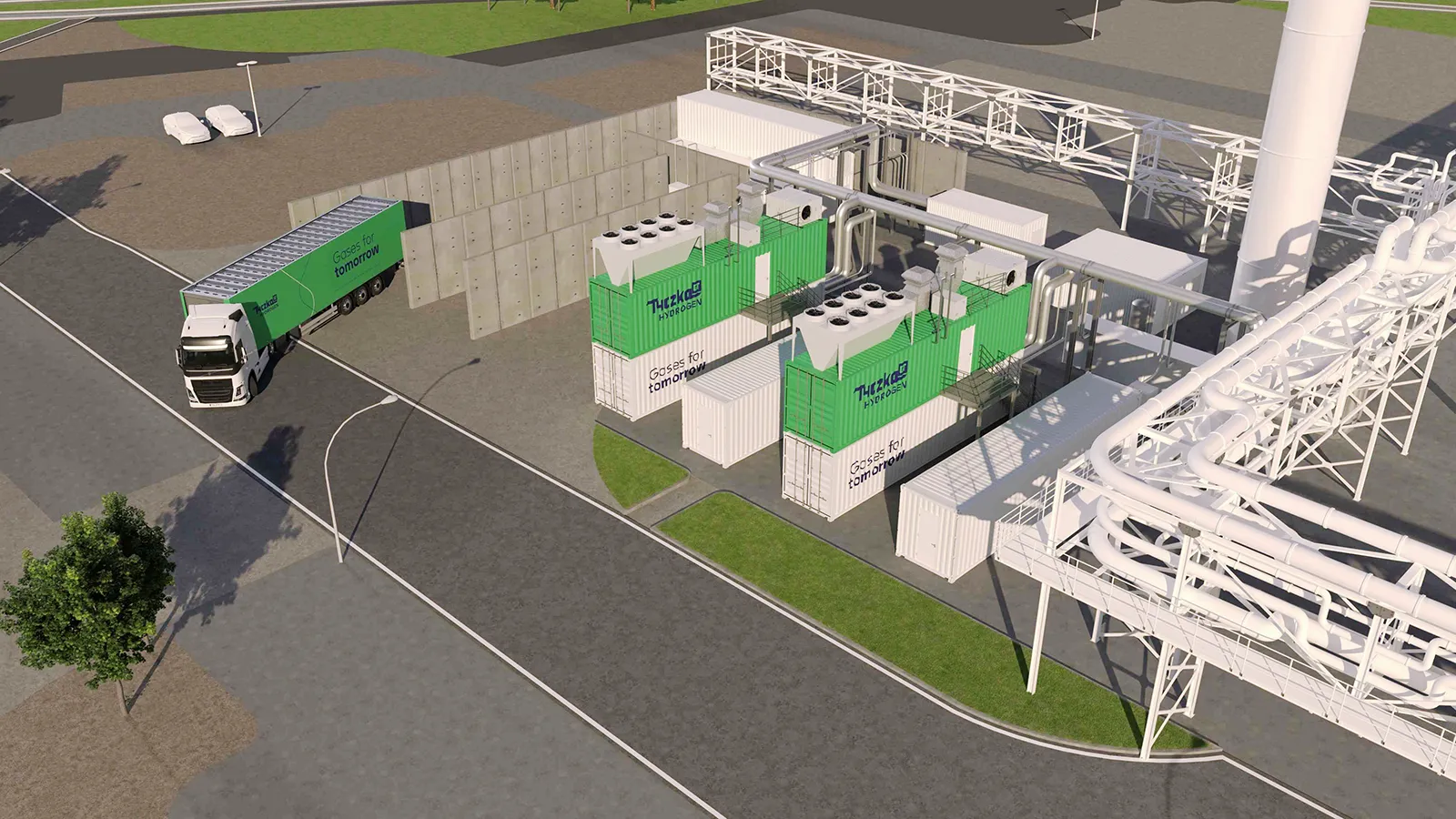

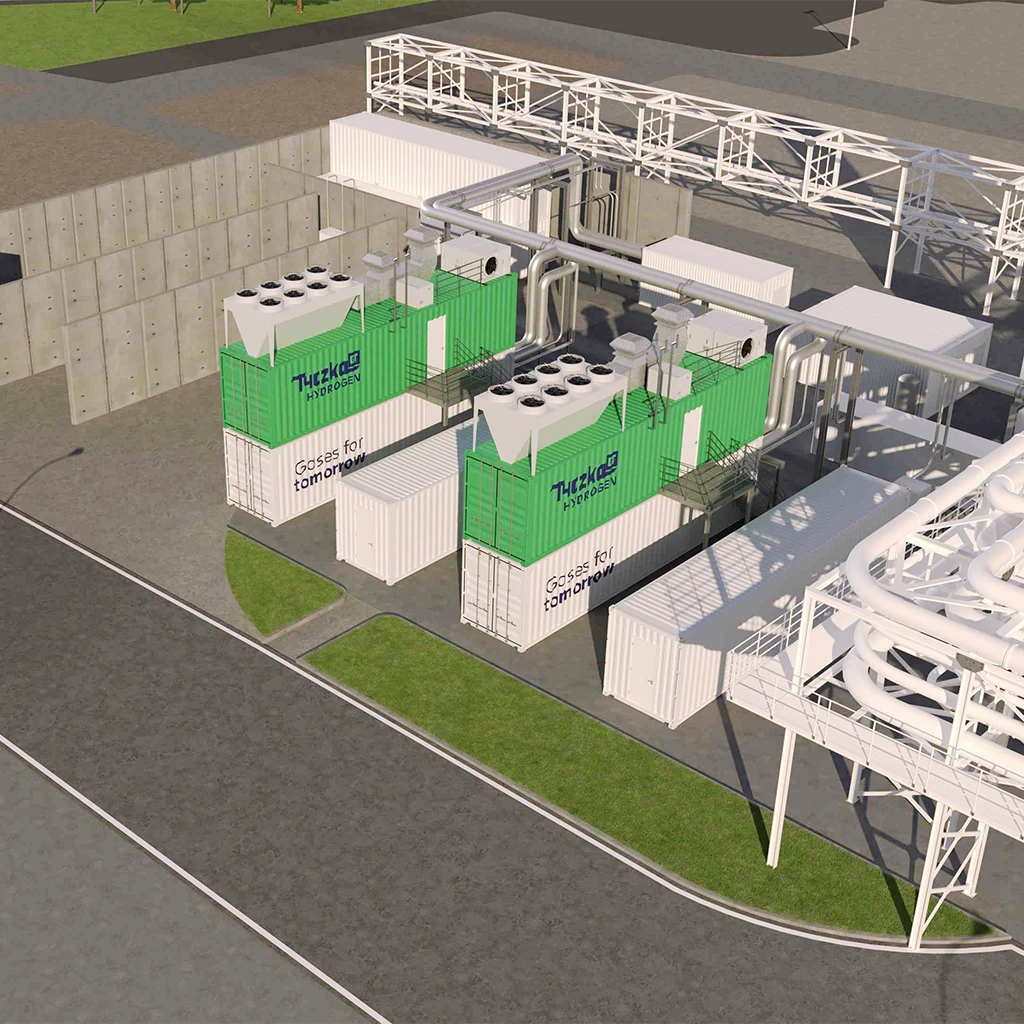

On-site solutions in the operator model
For the on-site supply of your site, we offer the design, implementation and operation of production plants with electrolysis from a single source.
Details
- Optimized operating strategy, adapted to individual customer requirements/site situation
- Ensuring the required hydrogen quality according to customer requirements
- Backup supply via trailer delivery from the Tyczka hydrogen production network
More from our portfolio
Hydrogen cylinders and bundles
If you need smaller quantities of hydrogen, our sister company in the Tyczka Group are also happy to offer you cylinders and classic H2 bundles. Details on the Supply with bundles and cylinders Product portfolio: pure hydrogen in various qualities as well as mixed gases (e.g. forming gas) Customized supply solutions from a single source.
Get in touch with us
Our experts will find the right solution for your hydrogen needs.
